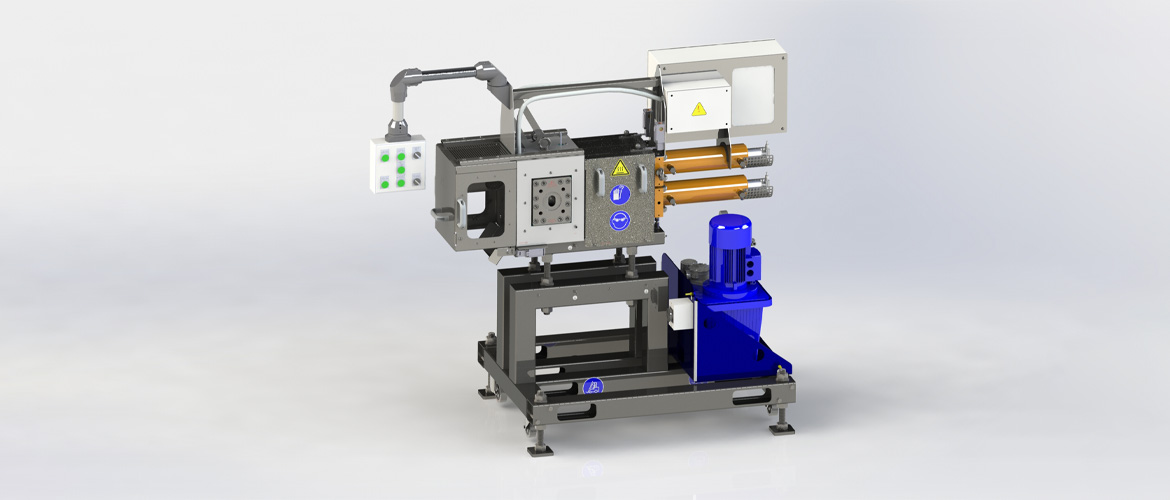

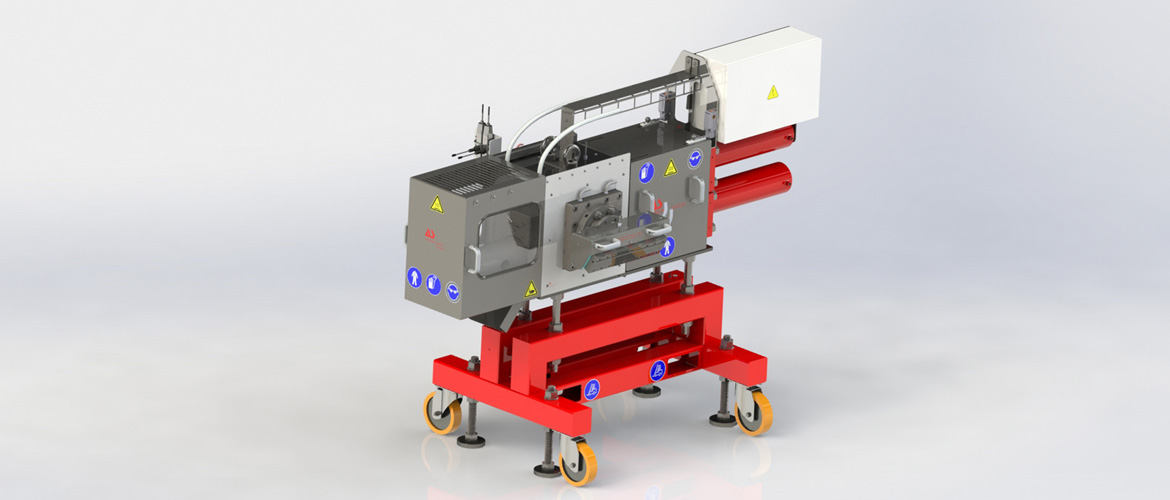

ASC - double piston screen changer

Good valued, continuous double piston screen changer in standarded modular design.


  • often no or only short additional adapters / adapter rings necessary for line installation
  • melt inlet and outlet melt dividing parts are disassembable for easiest inner complete cleaning
  • melt sensor borings includable to screen changer without additional costs
  • optimized, individual connection dimension executable without additional costs
  • upper and lower screen bolt in equally execution (compatibility)
  • straight, dead space free streaming of screen cavities from ahead, thereby no danger of screen displacing by angular melt flow

We offer the following ASC screen changer types

  • with / without base frame / movable stand
  • with / wthout hydraulic unit
  • with / without elektric hydraulic control
  • with/ without heating control system
  • with / without peripherial equipement (e.g. discharge tool)
  • with special heat treatments or special coatings for abrasive and / or korrosive, also "HT" (high temperature application) until 842°F (450 °C)
  • of course also deliverable as self-sufficient operational complete system
